Aluminum Corrugated Panel

Kynar 500 PVDF Coating  |  Lightweight  |  Striking Aesthetics

A2
Fire Rated
4.0mm
Panel Thickness
6000mm
Max Length
2300mm
Max Width
Architectural Corrugated Aluminum Panel – Excellent Fire Performance

AluAone Corrugated Aluminum Panel features a three-layer structure similar to aluminum composite panels, perfectly combining a corrugated core with the durability of pre-coated aluminum coils. The surface is coated with Kynar 500 PVDF or FEVE coating, ensuring long-lasting color retention and weather resistance. As a 100% aluminum product, it achieves A2 non-combustible fire rating, meeting the strictest global fire safety codes for high-rise and public buildings. Compared to ACM A2 mineral core panels, corrugated aluminum panels are approximately 50% lighter — delivering equivalent fire performance at significantly reduced weight.

~50% lighter than ACM A2

Same A2 fire rating, approximately half the weight of ACM mineral core panels

PVDF / Powder coated

Meets AAMA 2605 / AAMA 2604 specifications

100% recyclable

Sustainable aluminum, infinite recycling without quality loss

Easy installation

Standard fixing methods, concealed or exposed fasteners

Panel Coating Structure

Protective Film (if needed)
Clear Coat
PVDF Coating (top coat)
Primer (adhesion)
Chemical Conversion (pre-treat)
Aluminum Coil (Top 0.50–0.80mm)
Aluminum Corrugated Sheet
Aluminum Coil (Bottom 0.40–0.50mm)

Kynar 500 PVDF coating applied via spray coating for superior weather resistance

Engineering Data
Aluminum corrugated panels manufactured to precise specifications for architectural facade and cladding applications.
PropertyValue
AlloyA3003 / 5005
TemperH24 / H14
Panel Thickness4.0 mm
Aluminum ThicknessTop (0.50–0.80mm) + 0.30mm + Bottom (0.40–0.50mm)
Max Width2300 mm
Max Lengthup to 6000 mm
Coating SystemKynar 500 PVDF 3 layers / FEVE / Polyester
Coating StandardAAMA 2605 / AAMA 2604
Fire RatingA2, Non-combustible (100% aluminum)
Recyclability100% recyclable
Where It Is Used
Aluminum corrugated panels serve a wide range of architectural and building envelope applications.

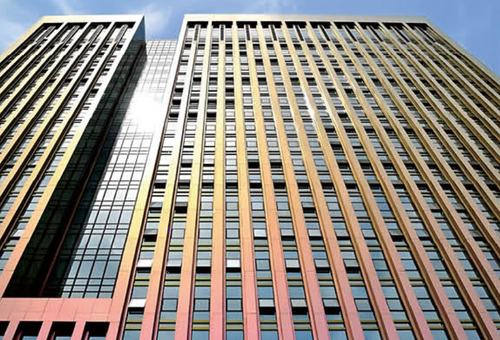

Facade Cladding

Facade Cladding

Exterior corrugated cladding for commercial, institutional, and residential buildings with bold visual rhythm.

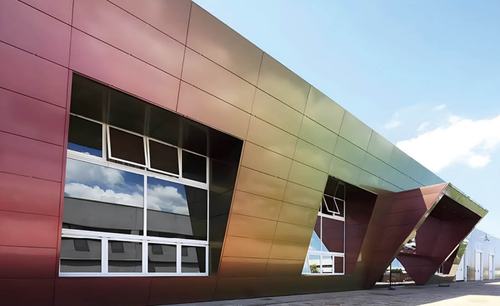

Wall Cladding

Wall Cladding

Interior and exterior wall cladding with corrugated texture for depth, shadow play, and visual interest.

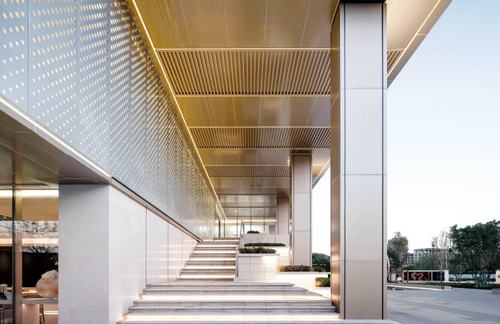

Canopy & Soffit

Canopy & Soffit

Overhead and underside cladding for entrance canopies, covered walkways, and building soffits.

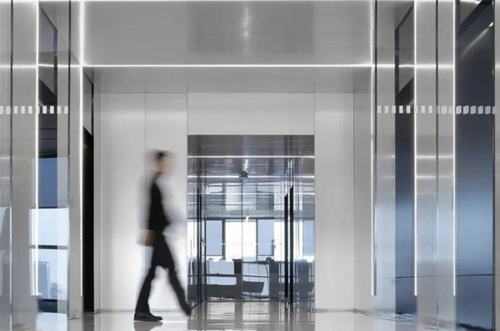

Interior Use

Interior Use

Feature walls, ceiling treatments, and decorative panels using corrugated aluminum for modern, industrial-inspired interior spaces.

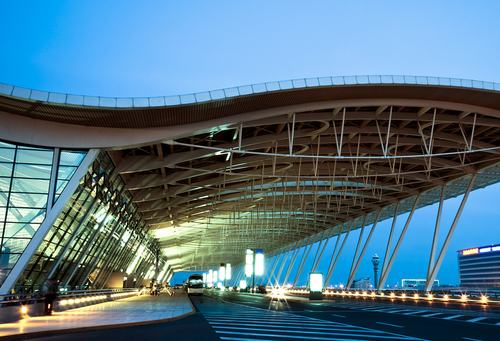

Airport & Transit

Airport & Transit

Large-format corrugated panels for terminal buildings, transit stations, and transportation infrastructure.

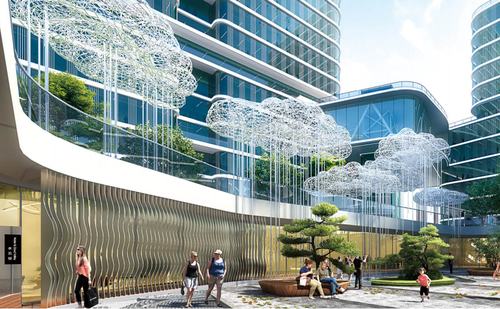

Commercial Buildings

Commercial Buildings

Corrugated cladding for retail complexes, offices, and commercial developments with striking facade aesthetics.

Unlimited Color Options
From metallic finishes to custom RAL, Pantone, and NCS colors — Kynar 500 PVDF spray coating in any color you specify.
Metallic

Metallic

Silver, champagne, bronze, and custom metallic effects

Solid Colors

Solid Colors

Full-spectrum solid colors with exceptional uniformity

Wood Grain

Wood Grain

Realistic timber finishes — oak, walnut, teak, and more

Marble / Stone

Marble / Stone

Natural stone and marble textures for premium facades

Brushed

Brushed

Directional brushed aluminum finishes

Spectra

Spectra

Color-shifting and multi-tone special effect finishes

Anodized Look

Anodized Look

Anodized appearance with PVDF durability

Rusted Finish

Rusted Finish

Corten steel-inspired oxidized textures

Knit Pattern

Knit Pattern

Woven textile-inspired surface patterns

Embossing

Embossing

Raised 3D textured surfaces and effects

Dual Color

Dual Color

Two-tone split finish — different colors on each face

Custom Color

Any RAL, Pantone, or NCS color matched precisely

Certified Excellence
ISO 9001
Quality Management
ISO 14001
Environmental
ISO 45001
Health & Safety
AAMA 2605
High-Performance Coating
Paint Suppliers
PPG · AkzoNobel · KFCC
01

Kynar 500 PVDF / Powder Coating

Premium coating systems meeting AAMA 2605 / AAMA 2604 specifications for superior weatherability.

02

20-Year Warranty

Comprehensive warranty on coating performance — color retention, chalking resistance, and adhesion.

03

Intertek-Certified Testing

All coatings tested and certified by Intertek for compliance with international performance standards.

Ready to Specify Corrugated Panels?

Send us your project specifications and profile requirements. Our engineering team will provide a detailed quotation with technical support — typically within 24 hours.
