Aluminum Composite Material

Fire Rated A2 / B1 / B2  |  PVDF Coated  |  Cost Effective A+++

3
Fire Ratings (A2/B1/B2)
3.0–8.0mm
Panel Thickness Range
2300mm
Max Width

The Classic Material
for Facade Cladding

Aluminum Composite Material (ACM) is a three-layer sandwich panel consisting of two pre-painted aluminum sheets bonded to a core material. This proven construction delivers an exceptional combination of rigidity, lightweight performance, and cost efficiency that has made ACM the world's most widely used facade cladding material.

AluAone ACM panels feature Kynar 500 PVDF, FEVE, or Polyester coatings applied via precision roller coating for consistent color and finish. The core is available in three fire-rated options — A2 mineral, B1 fire-retardant, and B2 standard PE — ensuring code compliance in any market.

Suitable for curving, rolling, and perforating, ACM panels adapt to virtually any architectural design. AluAone also provides composite solutions for different metals to meet specialized project requirements.

High durability and super weather resistance
Excellent for both indoor and outdoor applications
Suitable for curving, rolling, and perforating
Lightweight yet rigid — easy to handle and install
Full range of fire ratings: A2, B1, and B2
Coating Structure Cross-Section
Protective Film
Roller Coated Aluminum Coil (Top) — 0.30–0.50mm
A2 / B1 / FR / PE Core
Coated Aluminum Coil (Bottom) — 0.30–0.50mm
Interior sideExterior side
Total Panel: 3.0 – 8.0 mm

Specifications

Detailed specifications for AluAone Aluminum Composite Material. Custom sizes available on request.

PropertyValue
AlloyA1100 / 3003 / 3105 / 5005
CoatingPVDF (Kynar 500) / FEVE / Polyester
Panel Thickness3.0 – 8.0 mm
Top Alu. Thickness0.30 – 0.50 mm
Bottom Alu. Thickness0.30 – 0.50 mm
SizesMax width 2300 mm, custom cut-to-size
Fire RatingA2 (mineral core) / B1 (FR core) / B2 (PE core)
Core MaterialMineral / Fire-Retardant / Polyethylene
Surface FinishMetallic, Solid, Wood, Marble, Brushed, Spectra, Anodized
Color MatchingCustom RAL / Pantone / NCS / Physical sample
Cost EffectivenessA+++ (most cost-effective facade cladding)

Fire Rating Comparison

AluAone ACM is available in three fire-rated core options. Choosing the correct fire rating ensures compliance with your country's building code and avoids costly project delays.

A2

Mineral Core — Non-Combustible

The highest fire safety standard for composite panels. A2 mineral core ACM is classified as non-combustible, meeting the most stringent building codes worldwide. Required for high-rise and public buildings in many jurisdictions.

Standards met:
AS 1530 (Australia) · BS 8414 (UK) · EN 13501-1 Class A2 · Meets strictest post-Grenfell regulations
High-rise buildings (50m+) Hospitals and healthcare Schools and public buildings Markets with strict fire codes (UK, AU, NZ)
B1

FR Core — Fire Retardant

Self-extinguishing fire-retardant core that meets most European fire safety requirements. B1-rated ACM provides an excellent balance between fire performance and cost, suitable for the majority of commercial and residential projects.

Standards met:
EN 13501-1 Class B · DIN 4102-1 B1 · Meets most European building codes · Self-extinguishing
Mid-rise commercial buildings Shopping centers and retail Office towers Markets with moderate fire codes (EU, ME)
B2

PE Core — Standard

Standard polyethylene core offering the most cost-effective ACM solution. Ideal for interior applications, low-rise buildings, and regions without stringent fire requirements. Maximum cost savings with full design flexibility.

Standards met:
DIN 4102-1 B2 · Suitable for projects without strict fire codes · Maximum cost efficiency
Interior wall and ceiling panels Signage and advertising Low-rise buildings Regions with flexible fire codes

A+++ Cost Effectiveness —
The Most Economical Facade

Among all aluminum facade products, ACM delivers the highest value per square meter. Lower material cost, lighter weight, and easier fabrication translate to savings at every stage of your project.

A+++

Highest Cost Effectiveness Rating

Compared to fabricated solid panels (A+) and pre-finished sheet (A++), ACM achieves A+++ — the best value in facade cladding

Lower Material Cost

The sandwich construction uses less aluminum than solid panels while maintaining structural rigidity. Three-layer design maximizes performance per dollar of material cost.

Lightweight = Lower Shipping

ACM panels weigh significantly less than solid aluminum, reducing freight costs for international delivery. Lighter panels also mean reduced structural load on the building.

Easy Fabrication = Lower Install

ACM is easily routed, curved, rolled, and perforated with standard tools. Faster on-site installation reduces labor costs compared to custom-fabricated solid panels.

Where ACM Excels

From high-rise curtain walls to interior signage, ACM panels deliver performance and design flexibility across a wide range of building types and applications.

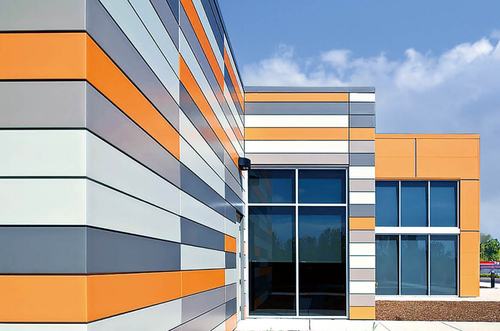

Curtain Wall Cladding

Curtain Wall Cladding

The most common ACM application. Clean lines, flat surfaces, and wide color range for modern facade design.

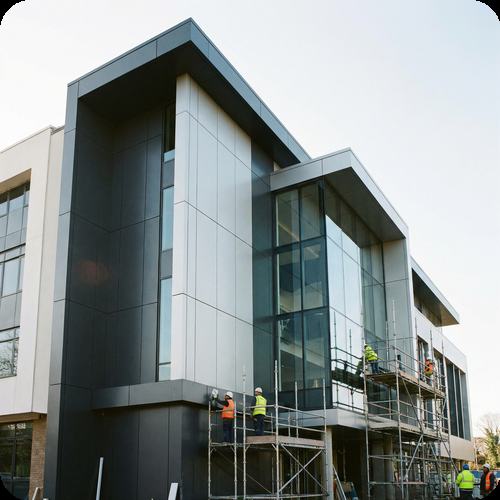

Building Renovation

Building Renovation

Lightweight ACM is ideal for re-cladding existing buildings. Minimal structural reinforcement needed.

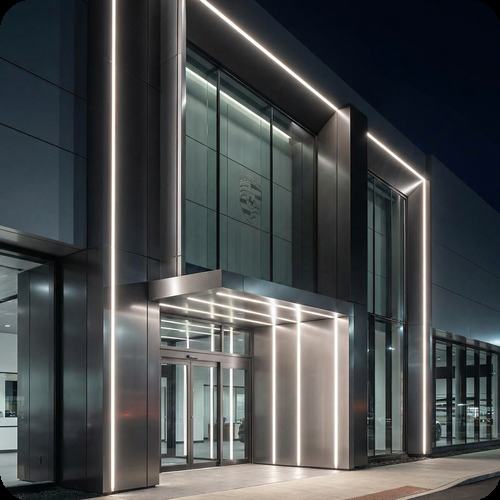

Commercial Facades

Commercial Facades

Office buildings, Porsche dealerships, bank headquarters — ACM delivers a premium look at an economical price point.

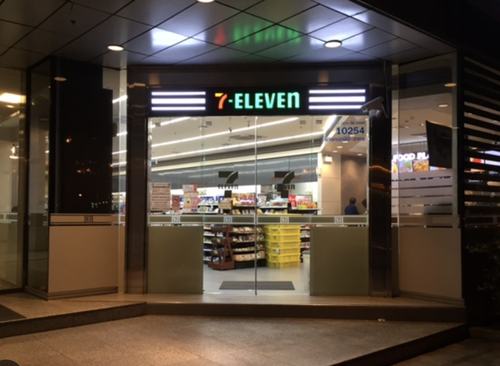

Retail & Shopping Centers

Retail & Shopping Centers

Eye-catching finishes and easy fabrication make ACM perfect for retail storefronts and shopping mall facades.

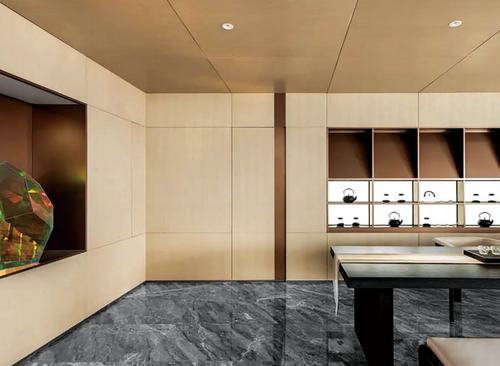

Interior Panels

Interior Panels

Wall panels and ceiling cladding for lobbies, corridors, and commercial interiors. B2 PE core for maximum economy.

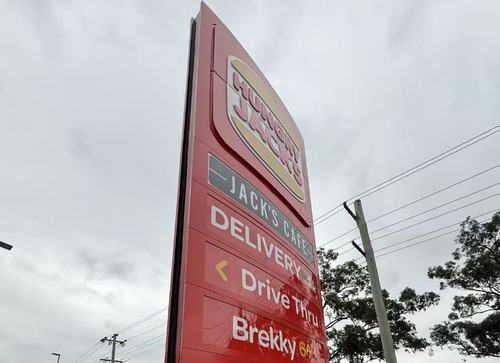

Signage & Advertising

Signage & Advertising

Flat, rigid, and easy to cut — ACM is the industry standard for sign blanks, advertising boards, and brand displays.

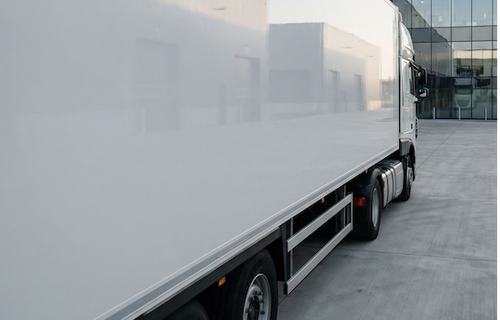

Truck Body Panels

Truck Body Panels

Lightweight yet rigid, ACM is widely used for truck body cladding and cargo box panels — reducing vehicle weight while providing a smooth, durable, and brandable exterior surface.

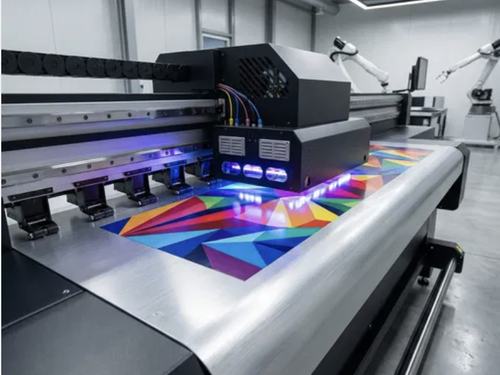

Printing & Display Substrates

Printing & Display Substrates

ACM's flat, rigid surface and excellent ink adhesion make it a premium substrate for UV printing, digital signage, exhibition displays, and point-of-sale materials.

Unlimited Design Possibilities

AluAone ACM is available in an extensive palette of colors and finishes. Custom color matching to any RAL, Pantone, NCS, or physical sample.

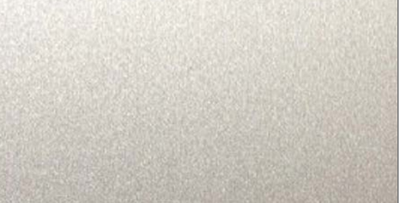

Metallic

Metallic

Silver, champagne, bronze, copper tones

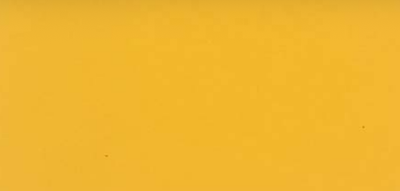

Solid

Solid

White, black, grey, red, blue, green, cream

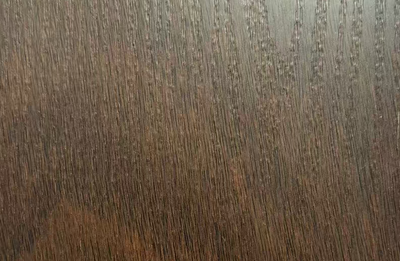

Wood Grain

Wood Grain

Oak, walnut, teak, cherry, cedar effects

Marble / Stone

Marble / Stone

Calacatta, Carrara, travertine, granite effects

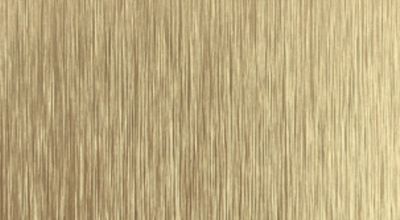

Brushed

Brushed

Brushed silver, gold, copper — directional texture

Spectra

Spectra

Color-shifting iridescent effects

Anodized Look

Anodized Look

Simulated anodized champagne, bronze, black

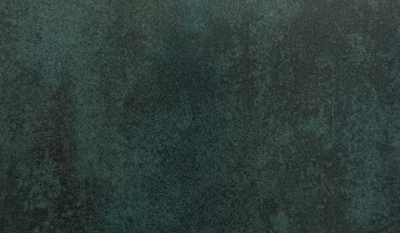

Rusted Finish

Rusted Finish

Corten steel-inspired oxidized textures

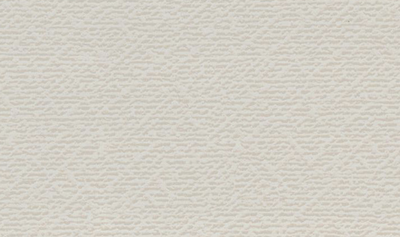

Knit Pattern

Knit Pattern

Woven textile-inspired surface patterns

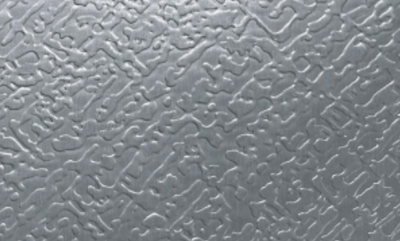

Embossing

Embossing

Raised 3D textured surfaces and effects

Dual Color

Dual Color

Two-tone split finish — different colors on each face for versatile interior/exterior design

Custom

Any RAL, Pantone, NCS, or physical sample

Certified Quality,
Trusted Worldwide

Every ACM panel passes multi-stage quality inspection. Coatings from PPG and AkzoNobel, verified by Intertek accredited laboratories.

ISO 9001:2015
Quality Management
ISO 14001:2015
Environmental Management
ISO 45001:2018
Health & Safety
EN 13501-1
Fire Classification
Paint Partners
PPG · AkzoNobel · KFCC
01

Raw Material Verification

Alloy composition, coil thickness, and surface quality tested on every incoming batch. Only tier-1 aluminum suppliers and premium paint brands accepted.

02

Core Material Testing

Fire performance of A2 mineral and B1 FR cores verified through independent laboratory testing. Core bonding strength checked per ASTM standards.

03

Coating & Lamination Control

Roller coating thickness, adhesion (cross-cut + T-bend), gloss, and color measured in-line. Lamination pressure and temperature monitored continuously.

04

Final Inspection & Documentation

Mill test certificates, fire test reports, and warranty letters issued per project. Third-party SGS/BV inspection available on request.

Request Your ACM Quote Today

Tell us your project requirements — fire rating, panel thickness, color, and quantity — and our team will respond within 12 hours with pricing, technical recommendations, and delivery options.
