One Factory, Every Product Line Covered

Our integrated manufacturing campus in Taizhou, Zhejiang houses three dedicated production divisions — roller coating, spray coating & fabrication, and composite panel lamination — enabling us to manufacture the full spectrum of architectural aluminum facade products under one roof.

3
Roller Coating Lines
20+2
Fabrication & Spray Lines
2
Composite & Corrugated Lines

Why It Matters to You

Your Complete Supply Chain, Simplified

Whether you need pre-painted coil for roll-forming, flat sheets for curtain walls, custom-shaped spray-coated panels, or fire-rated composite cladding — it all comes from a single, ISO-certified source. One factory, one quality standard, one point of contact. This means consistent colour matching across product types, simplified logistics, and faster project delivery.

50,000+
Tons Annual Capacity
Roller coated coil and sheet output per year
5
Product Lines
Coil, Sheet, Fabricated Panel, ACM, Corrugated Panel
40+
Countries Served
From a single manufacturing campus worldwide

Production Line 1

3 × Second-Generation Roller Coating Lines

The foundation of our product range. Three fully automated coil coating lines produce pre-painted aluminum coil and sheet — the raw material for everything from standing-seam roofing to curtain wall panels.

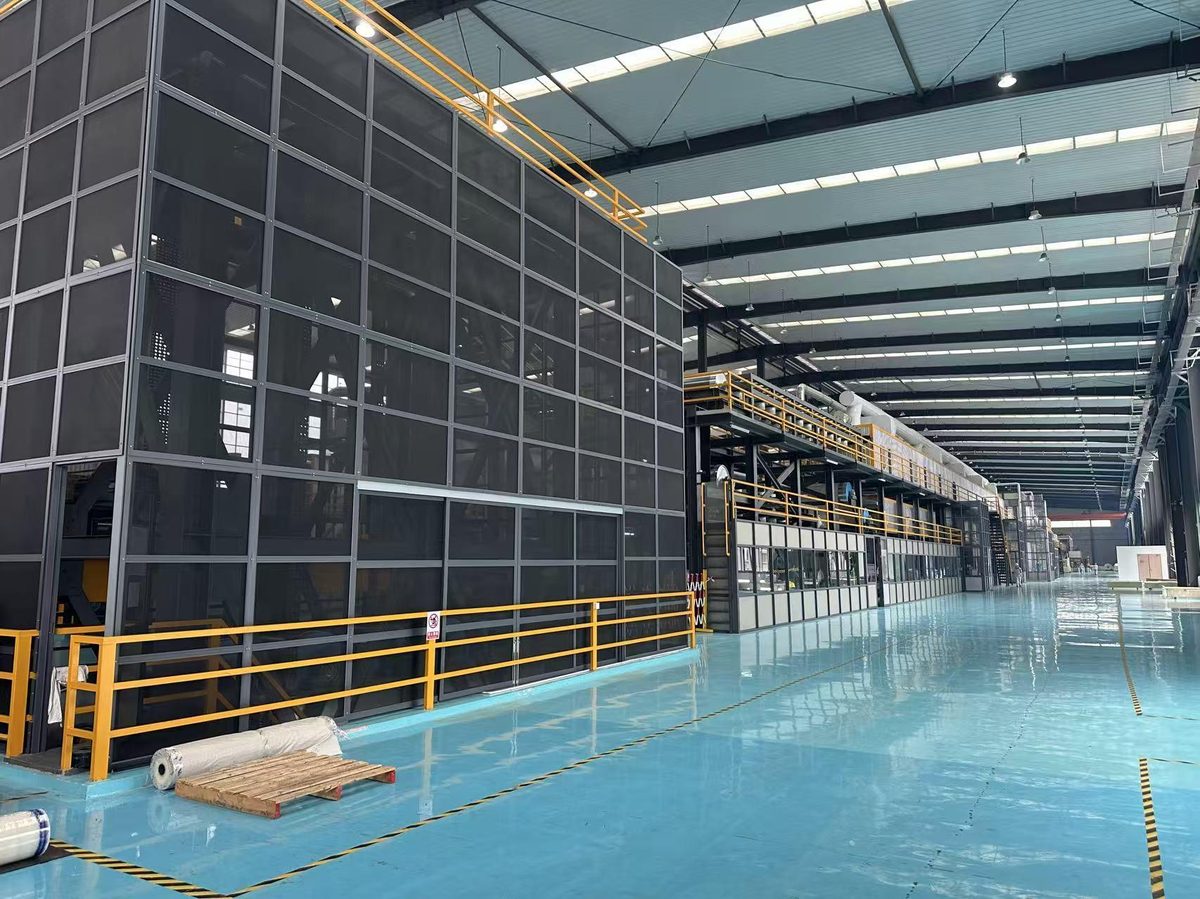

Second-generation roller coating line
What It Produces

Color Coated Aluminum Coil & Pre-Finished Sheet

Three continuous coil coating lines process aluminum coil up to 2020mm width and up to 3.0mm thickness through a multi-stage process: alkaline cleaning, chromate-free pre-treatment, multi-layer primer and topcoat application, precision oven curing, and protective film lamination. The result is consistently coated coil ready for slitting, cut-to-length, or direct shipment.

Key Capabilities

Max coil width: 2020mm  |  Max thickness: 3.0mm
Coatings: Kynar 500 PVDF, FEVE, Polyester (2 or 3 layers)
Finishes: Solid, Metallic, Wood Grain, Stone, Brushed, Spectra
Colour accuracy: ΔE ≤ 0.06 (Intertek verified)
Paint partners: PPG, AkzoNobel, KFCC

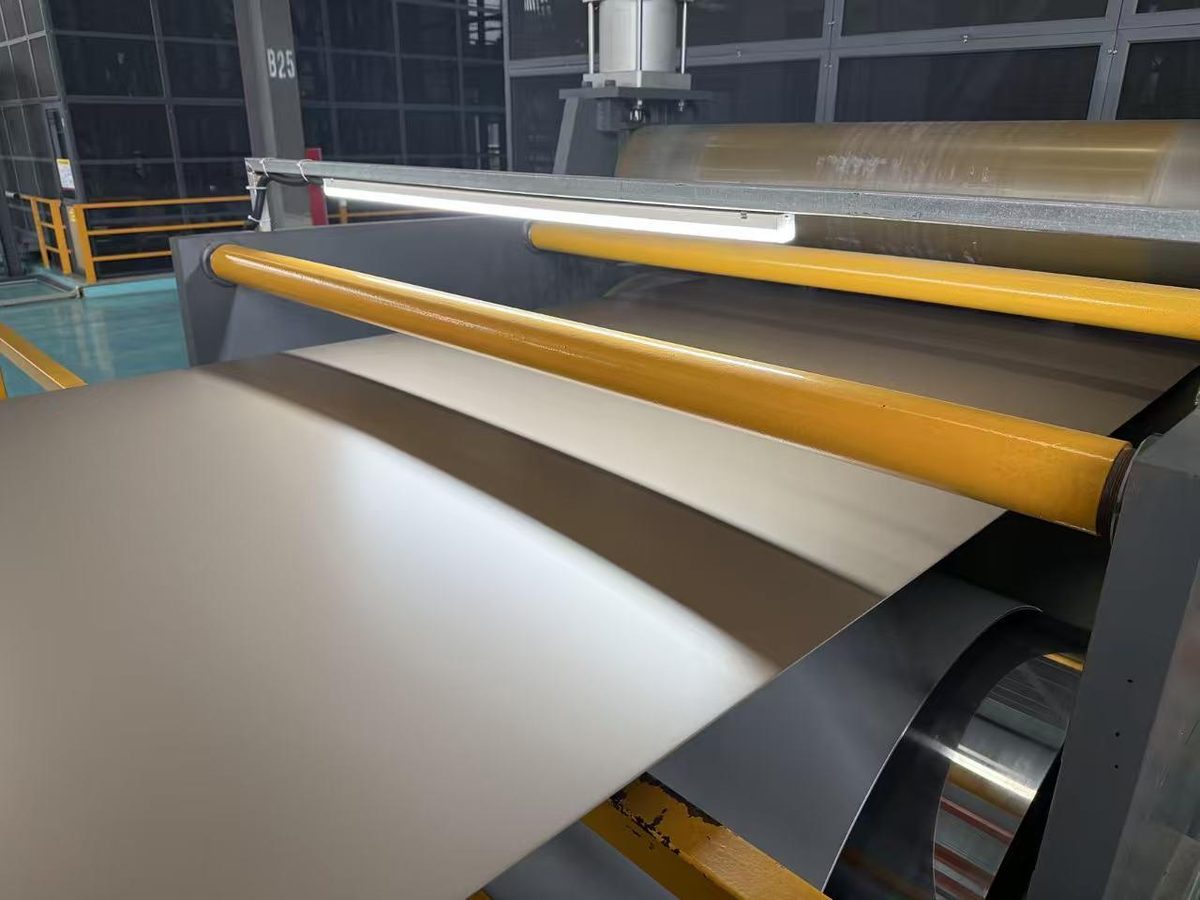

Four-roller precision coating head
Why It Matters

Consistent Quality at Scale

The four-roller precision coating system controls film thickness to within ±2μm tolerance, ensuring uniform colour and gloss across entire production runs. Intelligent temperature-controlled curing ovens guarantee optimal paint cure for long-term coating performance. Environmental exhaust recovery captures and treats all VOC emissions, meeting ISO 14001 requirements.

Products Covered

Color Coated Aluminum Coil — for roofing, cladding, gutters, roll-forming
Pre-Finished Aluminum Sheet — cut-to-size flat sheet for curtain walls, soffits, facades

Production Line 2

20 Fabrication Machines + 2 Spray Coating Lines

A complete fabrication workshop that transforms flat aluminum sheet into installation-ready architectural panels — any shape, any size, no minimum order.

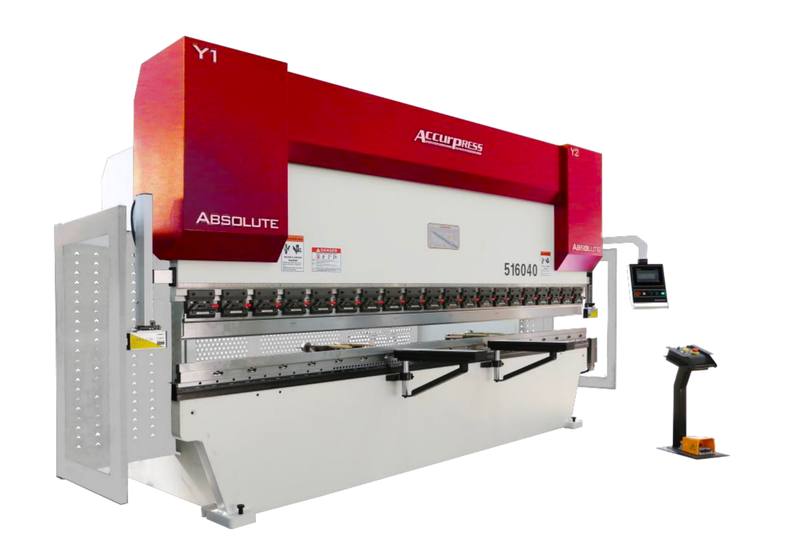

CNC fabrication workshop
What It Produces

Fabricated Aluminum Panel

Our fabrication division operates 20 specialized machines including CNC routers, brake presses, roll-forming equipment, and welding stations, complemented by 2 dedicated spray coating lines. Panels are CNC-cut, folded, welded with stiffeners and brackets, then spray-coated with Kynar 500 PVDF or Powder Coating — arriving on site fully finished and ready to install.

Key Capabilities

Panel thickness: 2.0 – 8.0mm  |  Any shape per drawing
Spray coating: Kynar 500 PVDF (AAMA 2605) / Powder Coating (AAMA 2604)
Capabilities: Perforated, curved, flat, corrugated profiles
No MOQ — from 1 panel to 10,000 panels

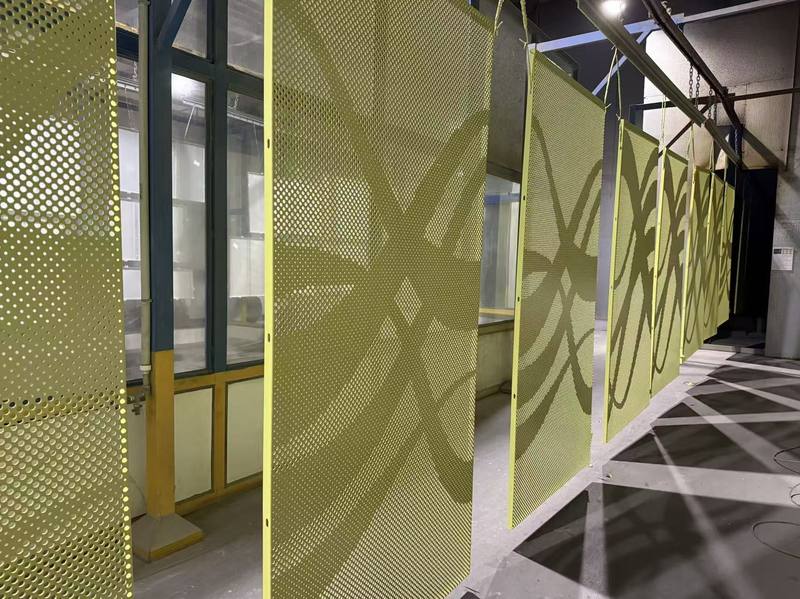

Spray coating line applying PVDF to fabricated panels
Why It Matters

Design Freedom Without Compromise

Architects specify complex geometries — curved facades, perforated screens, tapered columns — and we deliver finished panels with stiffeners, brackets, and factory-applied coating. The 2 spray lines handle both PVDF and powder coating, giving specifiers flexibility across performance tiers. No minimum order quantity means even small-run bespoke projects are economically viable.

Products Covered

Fabricated Aluminum Panel — custom spray-coated panels, any shape, installation-ready

Production Line 3

2 × ACM & Corrugated Panel Composite Lines

Dedicated lamination lines that bond pre-coated aluminum skins to mineral, fire-retardant, or PE cores — producing the most cost-effective and fire-compliant facade cladding available.

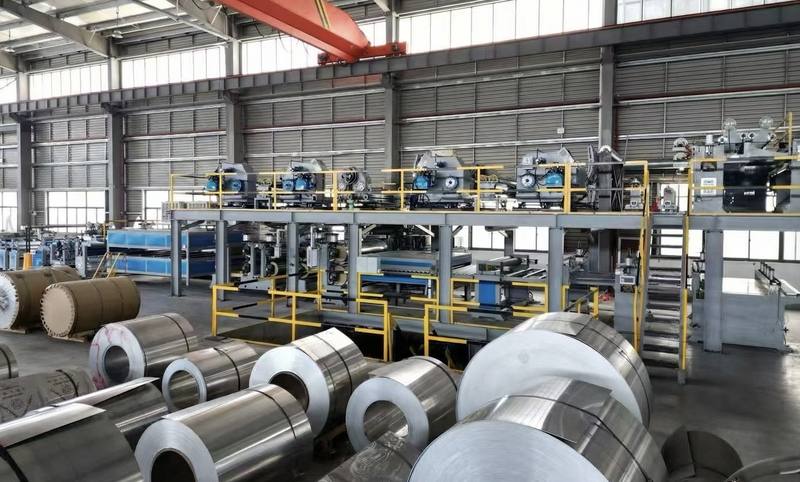

ACM composite panel lamination line
What It Produces

Aluminum Composite Material & Corrugated Panel

Two continuous lamination lines bond pre-coated aluminum coil (from our own roller coating lines) to A2 mineral, B1 fire-retardant, or B2 PE core materials under heat and pressure. The same lines also produce aluminum corrugated panels with a three-layer composite structure featuring a corrugated core. Both products exit the line as finished, cut-to-size panels ready for routing, folding, and installation.

Key Capabilities

ACM panel thickness: 3.0 – 8.0mm  |  Fire rating: A2 / B1 / B2
Corrugated panel: 4.0mm  |  Sine wave & mini wave profiles
Aluminum skins from our own coating lines — full colour traceability
Cost-effective index: A+++ — lowest installed cost per m²

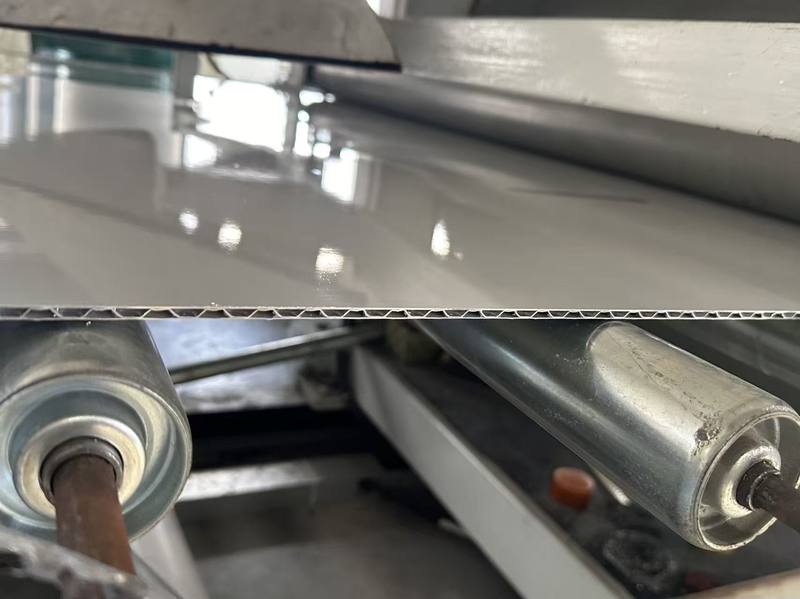

Aluminum corrugated panel composite line
Why It Matters

Vertical Integration = Better Price, Better Quality

Because we coat our own aluminum skins in-house, we control quality from raw coil to finished composite panel. This vertical integration eliminates the markup and quality variability of buying pre-painted coil from third parties. The result: better colour consistency between your ACM and your flat sheet on the same project, competitive pricing, and shorter lead times since there is no waiting for external coating suppliers.

Products Covered

Aluminum Composite Material — A2/B1/B2 fire-rated sandwich panels
Aluminum Corrugated Panel — A2 fire-rated corrugated core panels
ISO 9001:2015
Quality Management System
ISO 14001:2015
Environmental Management
ISO 45001:2018
Occupational Health & Safety
