100% Aluminum | Coil Coated | Kynar 500 PVDF/FEVE | 2–3 Coating Layers
Product Overview
AluAone Pre-Finished Aluminum Sheet is 100% aluminum, pre-treated and coated using a continuous roller coating process that delivers a uniform, consistent finish across every panel. The Kynar 500 PVDF surface coating provides exceptional durability, UV resistance, and weatherability for decades of exterior performance.
Unlike spray-coated panels, our coil-coated sheets benefit from factory-controlled conditions that ensure precise coating thickness, superior adhesion, and unmatched color consistency batch after batch. The result is a non-combustible, cost-effective facade solution with an A+ cost-effectiveness index.
2 or 3 layers of coating applied via continuous roller coating line
Technical Data
Standard specifications for AluAone pre-finished aluminum sheet. Custom dimensions and coating systems available on request.
| Property | Value |
|---|---|
| Alloy | A3003 / 5005 / 5052 / 5754 |
| Temper | H24 / H14 / H32 |
| Standard Thickness | 2.0 / 2.50 / 3.0 mm |
| Standard Widths | 1000 / 1200 / 1250 / 1500 / 1550 / 1575 / 1600 mm |
| Standard Length | ≤ 6000 mm |
| Coating System | Kynar 500 PVDF / FEVE |
| Coating Layers | 2 or 3 layers (primer + color coat + clear coat) |
| Coating Process | Continuous roller coating (coil coating) |
| Fire Rating | Non-Combustible (100% Aluminum Fr A1 grade) |
| Surface Finish | Metallic, Solid, Wood, Marble, Brushed, Spectra, Anodized, Custom |
| Recyclability | 100% Recyclable |
Fire Safety
No combustible core. No compromise on fire safety. Meets the strictest building codes worldwide.

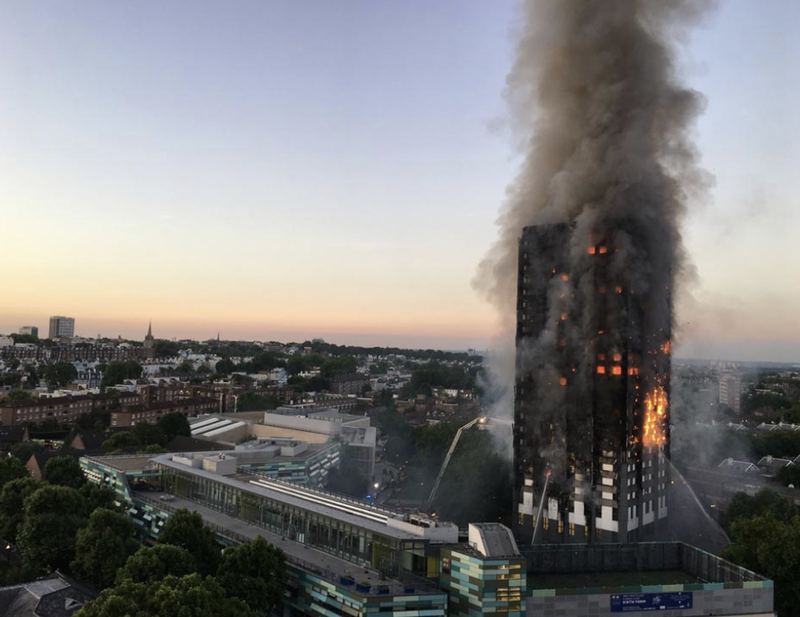

Grenfell Tower fire, London 2017 — a tragic reminder of why non-combustible facade materials are critical for building safety.
Following high-profile facade fires — most notably the Grenfell Tower tragedy in London, 2017, which claimed 72 lives — building codes worldwide have undergone sweeping reform. Governments and regulatory bodies now mandate non-combustible cladding materials for high-rise and public buildings. AluAone pre-finished aluminum sheet is 100% solid aluminum with no combustible core — inherently meeting the strictest fire safety requirements without relying on fire-retardant additives or composite layering.
Unlike composite panels with PE cores, solid aluminum sheet contains zero combustible materials. It will not ignite, spread flame, or produce toxic smoke — providing inherent fire protection for the entire lifespan of the building without degradation over time.
Meets AS 1530 (Australia), BS 8414 (UK), NFPA 285 (US), and EN 13501-1 requirements for non-combustible facade materials. Fully compliant with post-Grenfell regulations across major markets worldwide.
Non-combustible cladding can significantly lower insurance premiums and eliminates liability concerns associated with flammable facade materials. Building owners and developers benefit from long-term cost savings and peace of mind, avoiding costly re-cladding programs mandated in many jurisdictions.
Fabrication
Pre-finished aluminum sheet can be fabricated into virtually any shape. State-of-the-art manufacturing enables custom design panels or cassettes of almost any shape and size.
Precision cut to any dimension on site or in shop. Clean edges with no coating damage.
Brake-formed into cassettes, trays, and angle profiles. Coating integrity maintained at bend lines.
Roll-formed into curved panels, barrel vault shapes, and wave profiles for distinctive architectural forms.
CNC-perforated patterns for ventilation, shading, and decorative effects. Custom designs available.
Applications
Pre-finished aluminum sheet is specified across a wide range of commercial, institutional, and high-rise building applications worldwide.

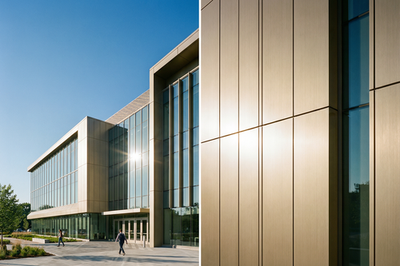

Primary exterior skin for commercial and residential buildings. Weather-tight, durable, and aesthetically versatile.

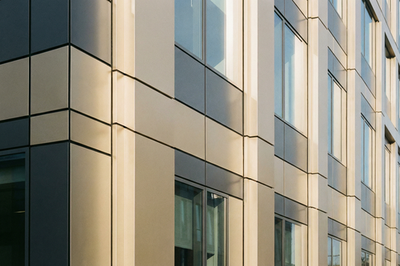

Spandrel and infill panels for curtain wall systems. Precise dimensions for clean grid-line aesthetics.

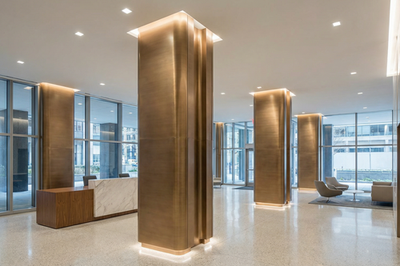

Wrap-around column covers in lobbies, atriums, and building exteriors. Seamless, continuous finish.

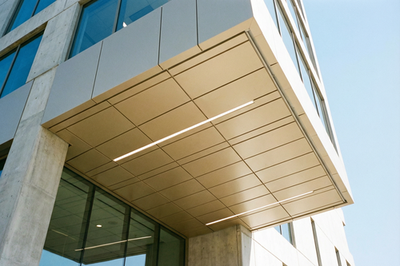

Underside cladding for overhangs, canopies, and elevated walkways. Clean, finished underside appearance.

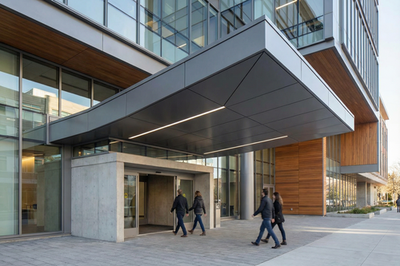

Overhead protection structures at building entrances. Lightweight yet structurally capable.

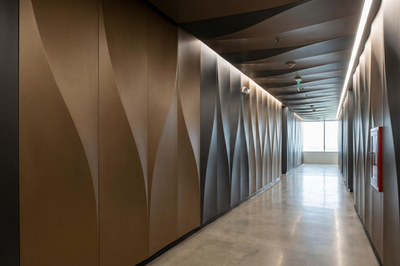

Interior decorative panels for lobbies, corridors, and ceilings. Fire-safe and easy to maintain.

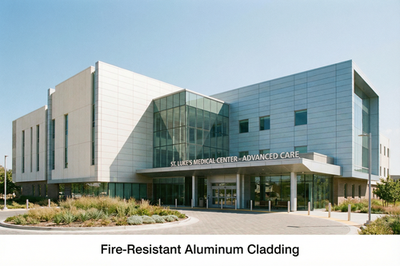

Hygienic, non-combustible facade solution for hospitals and healthcare facilities. Meets stringent fire codes.

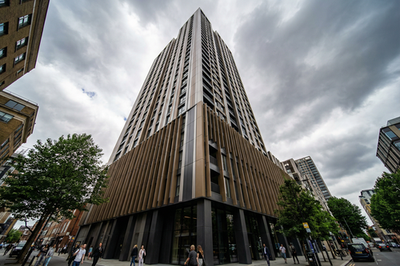

Lightweight, non-combustible cladding for towers and high-rise buildings. Compliant with post-Grenfell regulations.
Color Range
Same extensive color range as our coil products. Metallic, solid, wood grain, marble, brushed, spectra, anodized looks, and fully custom colors to match any architectural vision.

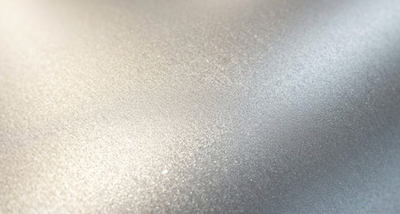

Silver, champagne, bronze, copper, gold, and custom metallic effects with depth and shimmer.

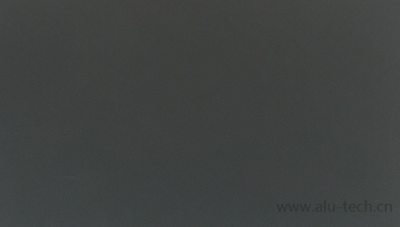

Full RAL palette and custom solid colors. High color consistency with ΔE≤1.00 precision.

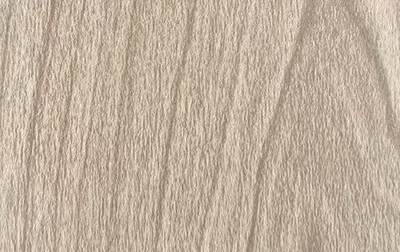

Natural wood texture effects — oak, walnut, teak, cedar. Realistic pattern with PVDF durability.

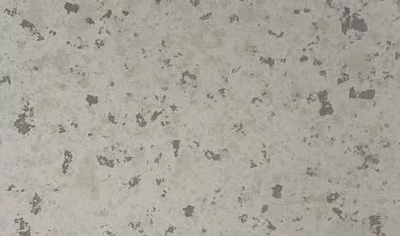

Natural stone patterns — white marble, grey granite, travertine. Premium look, lightweight material.

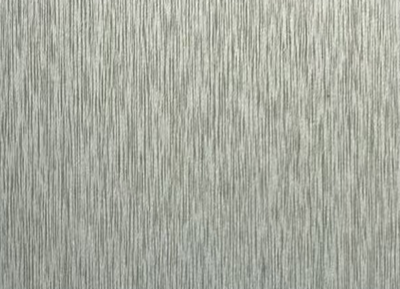

Linear brushed texture in silver, bronze, and dark tones. Industrial modern aesthetic.

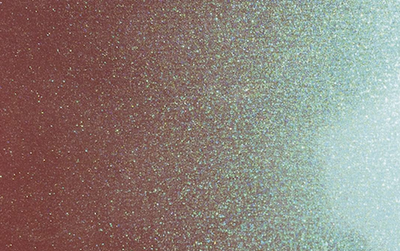

Color-shifting iridescent finishes that change appearance with viewing angle and lighting.

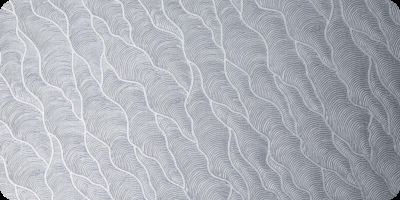

Simulated anodized finishes — natural, champagne, bronze. Coil-coated for superior uniformity.

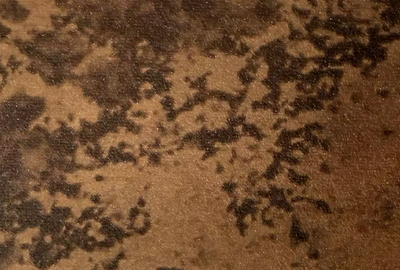

Corten steel-inspired oxidized textures. Warm, industrial aesthetic without actual corrosion.

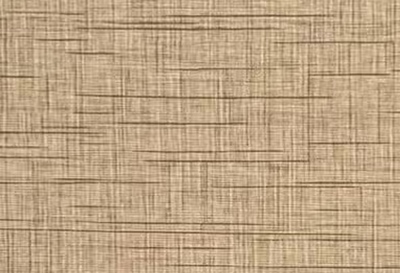

Woven textile-inspired surface patterns. Unique tactile appearance for distinctive facade designs.

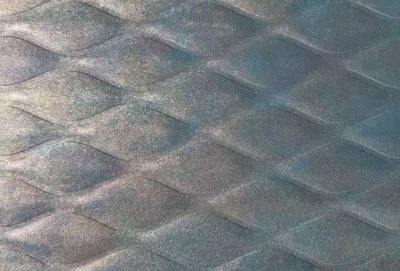

Raised 3D textured surfaces — geometric, leather, linen effects. Adds depth and visual interest.
Any RAL, Pantone, NCS, or physical sample matched. Digital archiving for future reorders.
Quality Assurance
Every pre-finished aluminum sheet is manufactured under ISO-certified quality systems, using coatings from the world's leading paint suppliers, and tested by Intertek accredited laboratories.
Quality management system certification. Every process controlled, documented, and continuously improved.
Environmental management system. Sustainable manufacturing, waste reduction, and 100% recyclable output.
Occupational health and safety management. Safe working conditions throughout the manufacturing process.
High-performance exterior coating specification. Kynar 500 PVDF tested for color, gloss, adhesion, and chemical resistance.
Independent third-party testing by Intertek. ΔE≤1.00 color precision, salt spray 4000+ hours, full AAMA 2605 compliance.
World-class paint suppliers. Kynar 500 resin-based coatings ensuring 20+ year exterior performance and warranty backing.
Ready to Start?
Tell us your project requirements — alloy, thickness, color, quantity, and destination. Our team will respond within 12 hours with pricing, lead time, and technical recommendations.
